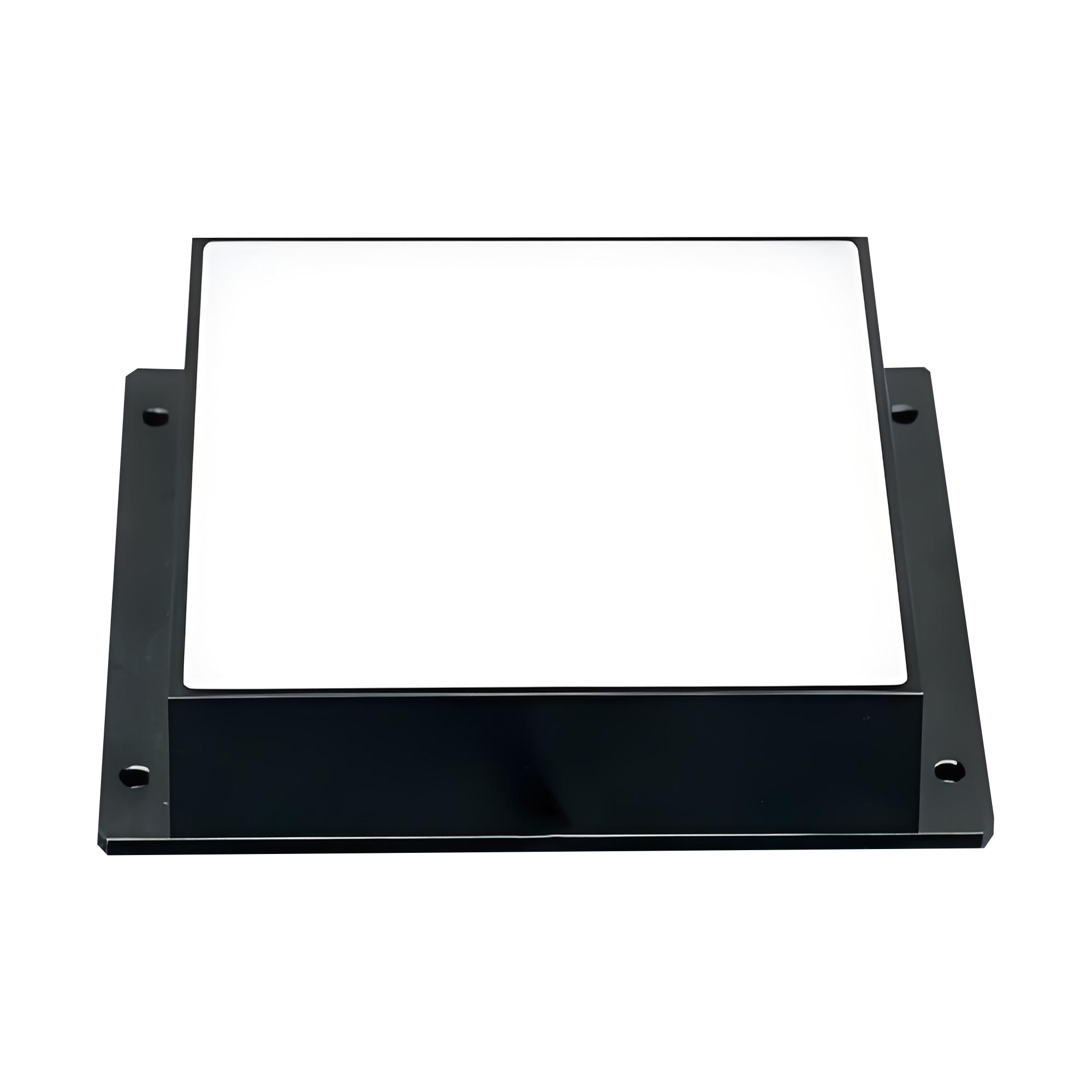

SWIR红外面光源
产品简介
专业定制各种红外面光源,波长定制范围:800-1750nm，光功率可定制：0-300mW/cm²,尺寸可定制,均匀性90%以上。
产品特点
◆ 波长：808nm、830nm、850nm、905nm、940nm、1050nm、1150nm、1200nm、1300nm、1350nm、1450nm、1550nm、1650nm、1720nm，其它可定制
◆ 标品光功率：10mW/cm²，其它可定制，最高可到300mW/cm²
◆ 被动散热、风冷散热、水冷散热、气冷散热等多种散热方式可定制
◆ 尺寸可根据需求定制
◆ 背光、开孔面光、平行面光源等可选
| 型号 | 波长 | 发光面尺寸 | 功率 |
|---|---|---|---|
| HS-PB-50-50-IR850 | 850nm | 50mm*50mm | DC24V, 3W |
| HS-PB-50-50-IR940 | 940nm | 50mm*50mm | DC24V, 3W |
| HS-PB-50-50-IR1050 | 1030-1050nm | 50mm*50mm | DC24V, 3W |
| HS-PB-50-50-IR1150 | 1125-1160nm | 50mm*50mm | DC24V, 2W |
| HS-PB-50-50-IR1300 | 1300-1350nm | 50mm*50mm | DC24V, 2W |
| HS-PB-50-50-IR1550 | 1500-1550nm | 50mm*50mm | DC24V, 2W |
| HS-PB-100-50-IR850 | 850nm | 100*50mm | DC24V, 5W |
| HS-PB-100-50-IR940 | 940nm | 100*50mm | DC24V, 5W |
| HS-PB-100-50-IR1050 | 1030-1050nm | 100*50mm | DC24V, 5W |
| HS-PB-100-50-IR1150 | 1125-1160nm | 100*50mm | DC24V, 4W |
| HS-PB-100-50-IR1300 | 1300-1350nm | 100*50mm | DC24V, 4W |
| HS-PB-100-50-IR1550 | 1500-1550nm | 100*50mm | DC24V, 4W |
| HS-PB-100-100-IR850 | 850nm | 100*100mm | DC24V, 10W |
| HS-PB-100-100-IR940 | 940nm | 100*100mm | DC24V, 10W |
| HS-PB-100-100-IR1050 | 1030-1050nm | 100*100mm | DC24V, 10W |
| HS-PB-100-100-IR1150 | 1125-1160nm | 100*100mm | DC24V, 8W |
| HS-PB-100-100-IR1300 | 1300-1350nm | 100*100mm | DC24V, 8W |
| HS-PB-100-100-IR1550 | 1500-1550nm | 100*100mm | DC24V, 8W |
| HS-PB-150-100-IR850 | 850nm | 150*100mm | DC24V, 12W |
| HS-PB-150-100-IR940 | 940nm | 150*100mm | DC24V, 12W |
| HS-PB-150-100-IR1050 | 1030-1050nm | 150*100mm | DC24V, 12W |
| HS-PB-150-100-IR1150 | 1125-1160nm | 150*100mm | DC24V, 10W |
| HS-PB-150-100-IR1300 | 1300-1350nm | 150*100mm | DC24V, 10W |
| HS-PB-150-100-IR1550 | 1500-1550nm | 150*100mm | DC24V, 10W |
| HS-PB-150-150-IR850 | 850nm | 150*150mm | DC24V, 15W |
| HS-PB-150-150-IR940 | 940nm | 150*150mm | DC24V, 15W |
| HS-PB-150-150-IR1050 | 1030-1050nm | 150*150mm | DC24V, 15W |
| HS-PB-150-150-IR1150 | 1125-1160nm | 150*150mm | DC24V, 12W |
| HS-PB-150-150-IR1300 | 1300-1350nm | 150*150mm | DC24V, 12W |
| HS-PB-150-150-IR1550 | 1500-1550nm | 150*150mm | DC24V, 12W |
| HS-PB-200-150-IR850 | 850nm | 200*150mm | DC24V, 18W |
| HS-PB-200-150-IR940 | 940nm | 200*150mm | DC24V, 18W |
| HS-PB-200-150-IR1050 | 1030-1050nm | 200*150mm | DC24V, 18W |
| HS-PB-200-150-IR1150 | 1125-1160nm | 200*150mm | DC24V, 15W |
| HS-PB-200-150-IR1300 | 1300-1350nm | 200*150mm | DC24V, 15W |
| HS-PB-200-150-IR1550 | 1500-1550nm | 200*150mm | DC24V, 15W |
| HS-PB-200-200-IR850 | 850nm | 200*200mm | DC24V, 22W |
| HS-PB-200-200-IR940 | 940nm | 200*200mm | DC24V, 22W |
| HS-PB-200-200-IR1050 | 1030-1050nm | 200*200mm | DC24V, 22W |
| HS-PB-200-200-IR1150 | 1125-1160nm | 200*200mm | DC24V, 18W |
| HS-PB-200-200-IR1300 | 1300-1350nm | 200*200mm | DC24V, 18W |
| HS-PB-200-200-IR1550 | 1500-1550nm | 200*200mm | DC24V, 18W |
| HS-PB-250-200-IR850 | 850nm | 250*200mm | DC24V, 25W |
| HS-PB-250-200-IR940 | 940nm | 250*200mm | DC24V, 25W |
| HS-PB-250-200-IR1050 | 1030-1050nm | 250*200mm | DC24V, 25W |
| HS-PB-250-200-IR1150 | 1125-1160nm | 250*200mm | DC24V, 20W |
| HS-PB-250-200-IR1300 | 1300-1350nm | 250*200mm | DC24V, 20W |
| HS-PB-250-200-IR1550 | 1500-1550nm | 250*200mm | DC24V, 20W |
| HS-PB-250-250-IR850 | 850nm | 250*250mm | DC24V, 28W |
| HS-PB-250-250-IR940 | 940nm | 250*250mm | DC24V, 28W |
| HS-PB-250-250-IR1050 | 1030-1050nm | 250*250mm | DC24V, 28W |
| HS-PB-250-250-IR1150 | 1125-1160nm | 250*250mm | DC24V, 25W |
| HS-PB-250-250-IR1300 | 1300-1350nm | 250*250mm | DC24V, 25W |
| HS-PB-250-250-IR1550 | 1500-1550nm | 250*250mm | DC24V, 25W |
| HS-PB-300-300-IR850 | 850nm | 300*300mm | DC24V, 36W |
| HS-PB-300-300-IR940 | 940nm | 300*300mm | DC24V, 36W |
| HS-PB-300-300-IR1050 | 1030-1050nm | 300*300mm | DC24V, 36W |
| HS-PB-300-300-IR1150 | 1125-1160nm | 300*300mm | DC24V, 30W |
| HS-PB-300-300-IR1300 | 1300-1350nm | 300*300mm | DC24V, 30W |
| HS-PB-300-300-IR1550 | 1500-1550nm | 300*300mm | DC24V, 30W |
