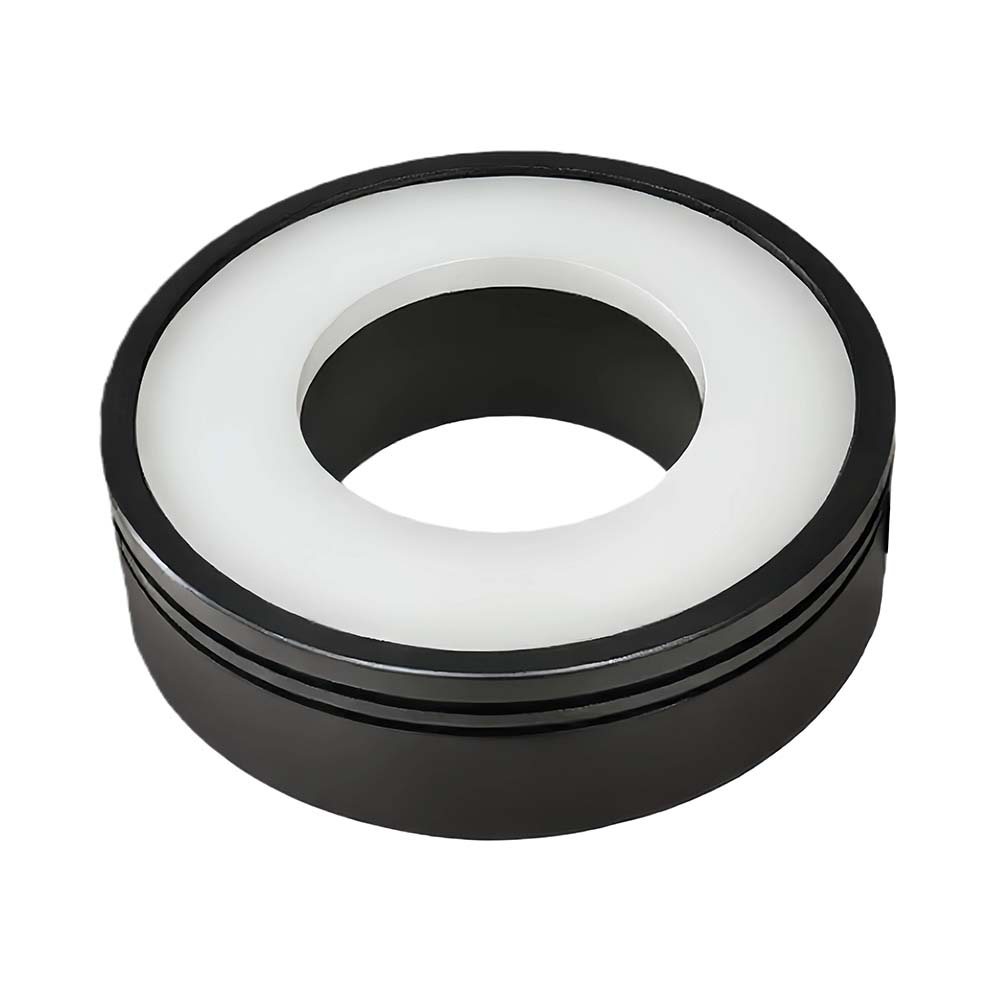

SWIR红外环形光源
产品简介
专业定制各种红外视觉光源，波长定制范围：800-1700nm,尺寸、光功率等均可根据需求定制
产品特点
◆ 波长：808nm、830nm、850nm、905nm、940nm、1050nm、1150nm、1200nm、1300nm、1350nm、1450nm、1550nm、1650nm、1720nm
◆ 其它波长可定制，定制范围：800-1700nm
◆ 光功率可根据需求定制
◆ 尺寸可根据需求定制
◆ 角度可定制,0°/30°/45°/60°/75°/90°等
◆ 被动散热/气冷/风冷/水冷多种散热方式可选
◆ 可以定制多波长组合：比如1050nm+1350nm/可见光+SWIR等
◆ 可定制IP67/IP68防护
| 型号 | 波长 | 内径 | 外径 | 角度 | 功率 |
|---|---|---|---|---|---|
| HS-RI0-70-36-IR850 | 850nm | 36mm | 70mm | 0° | DC 24V 2.4W |
| HS-RI0-70-36-IR940 | 940nm | 36mm | 70mm | 0° | DC 24V 2.4W |
| HS-RI0-70-36-IR1050 | 1030-1050nm | 36mm | 70mm | 0° | DC 24V 2.4W |
| HS-RI0-70-36-IR1150 | 1125-1160nm | 36mm | 70mm | 0° | DC 24V 2.4W |
| HS-RI0-70-36-IR1300 | 1300-1350nm | 36mm | 70mm | 0° | DC 24V 2.4W |
| HS-RI0-70-36-IR1550 | 1500-1550nm | 36mm | 70mm | 0° | DC 24V 2.4W |
| HS-RI0-90-36-IR850 | 850nm | 36mm | 90mm | 0° | DC 24V 5W |
| HS-RI0-90-36-IR940 | 940nm | 36mm | 90mm | 0° | DC 24V 5W |
| HS-RI0-90-36-IR1050 | 1030-1050nm | 36mm | 90mm | 0° | DC 24V 5W |
| HS-RI0-90-36-IR1150 | 1125-1160nm | 36mm | 90mm | 0° | DC 24V 5W |
| HS-RI0-90-36-IR1300 | 1300-1350nm | 36mm | 90mm | 0° | DC 24V 5W |
| HS-RI0-90-36-IR1550 | 1500-1550nm | 36mm | 90mm | 0° | DC 24V 5W |
| HS-RI0-100-40-IR850 | 850nm | 40mm | 100mm | 0° | DC 24V 7W |
| HS-RI0-100-40-IR940 | 940nm | 40mm | 100mm | 0° | DC 24V 7W |
| HS-RI0-100-40-IR1050 | 1030-1050nm | 40mm | 100mm | 0° | DC 24V 7W |
| HS-RI0-100-40-IR1150 | 1125-1160nm | 40mm | 100mm | 0° | DC 24V 7W |
| HS-RI0-100-40-IR1300 | 1300-1350nm | 40mm | 100mm | 0° | DC 24V 7W |
| HS-RI0-100-40-IR1550 | 1500-1550nm | 40mm | 100mm | 0° | DC 24V 7W |
| HS-RI0-120-50-IR850 | 850nm | 50mm | 120mm | 0° | DC 24V 12W |
| HS-RI0-120-50-IR940 | 940nm | 50mm | 120mm | 0° | DC 24V 12W |
| HS-RI0-120-50-IR1050 | 1030-1050nm | 50mm | 120mm | 0° | DC 24V 12W |
| HS-RI0-120-50-IR1150 | 1125-1160nm | 50mm | 120mm | 0° | DC 24V 12W |
| HS-RI0-120-50-IR1300 | 1300-1350nm | 50mm | 120mm | 0° | DC 24V 12W |
| HS-RI0-120-50-IR1550 | 1500-1550nm | 50mm | 120mm | 0° | DC 24V 12W |
| HS-RI45-70-36-IR850 | 850nm | 36mm | 70mm | 45° | DC 24V 2.4W |
| HS-RI45-70-36-IR940 | 940nm | 36mm | 70mm | 45° | DC 24V 2.4W |
| HS-RI45-70-36-IR1050 | 1030-1050nm | 36mm | 70mm | 45° | DC 24V 2.4W |
| HS-RI45-70-36-IR1150 | 1125-1160nm | 36mm | 70mm | 45° | DC 24V 2.4W |
| HS-RI45-70-36-IR1300 | 1300-1350nm | 36mm | 70mm | 45° | DC 24V 2.4W |
| HS-RI45-70-36-IR1550 | 1500-1550nm | 36mm | 70mm | 45° | DC 24V 2.4W |
| HS-RI45-90-36-IR850 | 850nm | 36mm | 90mm | 45° | DC 24V 4.5W |
| HS-RI45-90-36-IR940 | 940nm | 36mm | 90mm | 45° | DC 24V 4.5W |
| HS-RI45-90-36-IR1050 | 1030-1050nm | 36mm | 90mm | 45° | DC 24V 4.5W |
| HS-RI45-90-36-IR1150 | 1125-1160nm | 36mm | 90mm | 45° | DC 24V 4.5W |
| HS-RI45-90-36-IR1300 | 1300-1350nm | 36mm | 90mm | 45° | DC 24V 4.5W |
| HS-RI45-90-36-IR1550 | 1500-1550nm | 36mm | 90mm | 45° | DC 24V 4.5W |
| HS-RI45-105-65-IR850 | 850nm | 65mm | 105mm | 45° | DC 24V 6W |
| HS-RI45-105-65-IR940 | 940nm | 65mm | 105mm | 45° | DC 24V 6W |
| HS-RI45-105-65-IR1050 | 1030-1050nm | 65mm | 105mm | 45° | DC 24V 6W |
| HS-RI45-105-65-IR1150 | 1125-1160nm | 65mm | 105mm | 45° | DC 24V 6W |
| HS-RI45-105-65-IR1300 | 1300-1350nm | 65mm | 105mm | 45° | DC 24V 6W |
| HS-RI45-105-65-IR1550 | 1500-1550nm | 65mm | 105mm | 45° | DC 24V 6W |
| HS-RI45-120-50-IR850 | 850nm | 50mm | 120mm | 45° | DC 24V 10W |
| HS-RI45-120-50-IR940 | 940nm | 50mm | 120mm | 45° | DC 24V 10W |
| HS-RI45-120-50-IR1050 | 1030-1050nm | 50mm | 120mm | 45° | DC 24V 10W |
| HS-RI45-120-50-IR1150 | 1125-1160nm | 50mm | 120mm | 45° | DC 24V 10W |
| HS-RI45-120-50-IR1300 | 1300-1350nm | 50mm | 120mm | 45° | DC 24V 10W |
| HS-RI45-120-50-IR1550 | 1500-1550nm | 50mm | 120mm | 45° | DC 24V 10W |
